Lab 2 - Problem Solving with Logic Gates

In this lab you will use logic gates in a circuit to solve a logical puzzle. Instead of building logic gates using transistors, we will use TTL chips, which have several logic gates in a single chip.

This laboratory is divided between pencil-and-paper exercises, and a physical implementation. Since the implementation is likely to take a full class period, you should complete steps 1 through 3 before the laboratory session.

The Problem

There is an old puzzle in which a farmer F must transport a wolf W, a goat G, and a cabbage C across a river. However, the farmer can only transport one of W, G, or C across the river at a time, and if left together and unattended, the goat will eat the cabbage and the wolf will eat the goat. Let F=0 indicate the presence of the farmer on the west bank of the river and F=1 indicate presence on the east bank. Use similar definitions for W, G, and C.

Lab Work

1. Derive a truth table defining a function which gives 1 if the farmer is in danger of losing the goat or the cabbage. You may assume that a trip across the river can be made instantaneously, so that if an item (or farmer) is not on one side of the river it must be on the other side.
2. Use a Karnaugh map to generate a sum-of-products expression for this function. Then simplify the expression further with boolean algebra. Your final result should include only 8 variables, including repeated occurrences of the same variable.
3. Draw a logic circuit diagram that implements your function from step 2. Label parts of the circuit that should be wired to the logic indicators on your protoboard to show when the farmer is in danger of losing either the goat or the cabbage.
4. Using TTL chips, construct and test a circuit that implements your circuit diagram from step 3.
5. If you have time, propose a solution to this puzzle starting with F, W, G, and C initially on the west bank and must be transported to the east bank. Use your circuit to check your solution.

Hints

• Check the part number on each chip carefully as you get it from the supply cabinet, and as you put it back. If you can not see the number well, hold it up to the sunlight. This is can be surprisingly helpful.
• Make a diagram of your physical circuit as you build it, recording where each gate in your logic circuit diagram is located on the protoboard.
• As you make each physical connection between logic gates, check the connection off in your logic circuit diagram.
• Either arrange your switches for F, W, G, and C in the same order as they are in your truth table, or be very careful to translate between the two correctly when testing your circuit.

Background

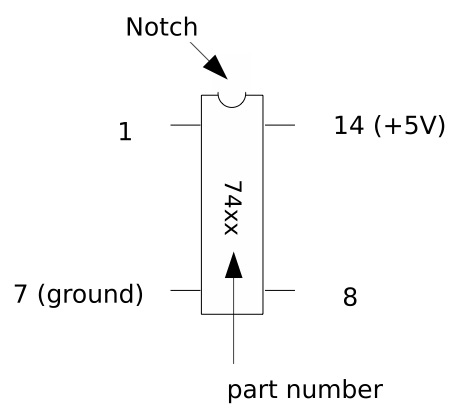

TTL chips look approximately like this. They are 14-pin “dual in-line packages” (DIPs), meaning that the chips are long and narrow with 7 pins on each side. Each chip has a small notch in one end for orientation. When the notch is pointed upward as in the diagram, the pins are numbered from 1 to 14 starting in the upper-left corner and proceeding counter-clockwise.

For purposes of your logic design, note we have the following TTL chips available in the lab:

• 1-input inverter (NOT) (6 gates per chip);
• 2-input AND, OR, NAND, NOR, XOR (4 gates per chip);
• 3-input AND (3 gates per chip).

I will provide a pinout diagram, showing what each pin on each chip is for. Please note that the pinout for different chip types (AND, OR, etc) is different.

Please note carefully, that you must connect each chip to power and to ground. It is important that you use the correct pins for this. Reversing power and ground will damage the chip.

Seating chips in the board

Please refer to the protoboard diagram provided in the lab handout, to locate the “channel” between banks of pin connection points. To seat a chip in the protoboard, orient it such that its notch is facing upward as in the diagram, then place its two rows of pins such that they straddle one of the valleys in the board. This helps you attach power and ground to the correct pins, and ensures that none of the pins are connected together.

The chips may take some careful coaxing to seat them properly. I suggest placing one row of pins loosely into their holes in the board, and then using a fingernail to get the other row of pins lined up and started into their holes. Once all pins have been started correctly, you can press firmly, and the chip should snap into place. (Please be gentle until the pins are started well, or they will get bent, but then do press firmly to make sure the chip is fully inserted and that each pin makes a good connection with the board.)

Removing chips from the board

Be careful not to pull chips out of the board at an angle, which could bend or break the pins. Grab the chip at the top and bottom edges (where the chip crosses the channel on the protoboard). If you cannot remove the chip by hand, we can remove it carefully using a small screwdriver.

Pull-down resistors

Recall that these are the resistors you need in your circuit to connect each switch to ground. In the previous lab, and in class notes, we used 15K resistors for this purpose. For this lab, you should use 150 Ohm resistors instead.

Informally, this is because the input pins on a TTL chip are made to “float” to a voltage mid-range between low and high. We can override that with a pull-down resistor connected to ground, but to do so we need to use a resistance that is smaller than that used internally in the chip.

Logic probe

Be sure the logic probe section of your protoboard is set to TTL, not CMOS logic.

Acknowledgements

Based on the fox, goose, and bag of beans puzzle.
