Exam 2: Expanding our vocabulary: Control structures and new image models

Topics: Integer-encoded colors, composition, lists and map, concision, color names, sectioning

In our explorations of colors, we found that we could start with a procedure such as irgb-redder that takes a color as a parameter and produces a new color, and use that procedure to transform a whole image. We also found that, as humans, we had difficulty telling what such a procedure did to individual colors.

> (irgb-redder (irgb 210 18 96))
15864416

Things are even less clear when we are dealing directly with color names.

So let's try writing a procedure that helps us learn what the color transformations do in terms of color names. That is, let's consider procedures that transform each color name in a list. Note that this process will be slightly more difficult, because the color transformations expect integer-encoded RGB colors rather than color names.

Write, but do not document, a procedure, (color-names-much-bluer color-names), that, given a list of color names, returns a new list of color names, with each color name in the result list an approximation of the color that results from applying irgb-bluer twice to the corresponding color in the original list. For example,

> (color-names-much-bluer (list "red" "blue" "green" "black" "white" "grey"
                            "brown" "hotpink" "burlywood" "cornflowerblue"))
'("crimson"
  "blue"
  "forestgreen"
  "midnightblue"
  "white"
  "mediumpurple"
  "mediumvioletred"
  "violet"
  "thistle"
  "cornflowerblue")

You may use only one call to map in your procedure. You may not write separate helper procedures.

You should make the body of this procedure as concise as you can.

You can use color->irgb to convert a color name to an integer-encoded RGB color and irgb->color-name to convert an integer-encoded RGB color back to a color name.

> (irgb->string (color->irgb "red"))
"255/0/0"
> (color->irgb "red")
16711680
> (irgb->string 16711680)
"255/0/0"
> (irgb-bluer 16711680)
16711712
> (irgb->string 16711712)
"255/0/32"
> (irgb-bluer 16711712)
16711744
> (irgb->string 16711744)
"255/0/64"
> (irgb->color-name 16711744)
"crimson"
> (irgb->string (color->irgb "crimson"))
"220/19/59"
; Yes, that's the closest we can get to 255/0/64

As you'll note from the examples, because there are many fewer color names than there are colors, Mediascheme approximates, and sometimes the converted color is closer to the original color than to any other color.

Topics: Conditionals, integer-encoded RGB colors, program style, image transformations

We've noted that we have a fairly wide palette of colors, 16,777,216 (256 x 256 x 256) to be exact. But what if we have only a few colors? For example, what if we have only four.

The first thing we would likely need to do is to develop a procedure to convert any of our 16,777,216 to one of those colors. But which one? Typically, we'd use the closest color. Which color is closest? It depends on the distance metric you use. Here's one.

; (irgb-distance c1 c2)
;   A metric for the "distance" between two integer-encoded RGB colors.
(define irgb-distance
  (lambda (c1 c2)
    (inexact->exact
     (round
      (sqrt
       (+ (square (- (irgb-red c1) (irgb-red c2)))
          (square (- (irgb-green c1) (irgb-green c2)))
          (square (- (irgb-blue c1) (irgb-blue c2)))))))))

To make a quadrachromic picture, it might seem like we should simply convert each pixel to the nearest color. Here's a procedure that does just that.

; (irgb-closest-4 original option1 option2 option3 option4)
;   Find the closest of the options to original.
(define irgb-closest-4
  (lambda (original option1 option2 option3 option4)
    (let ([d1 (irgb-distance original option1)]
          [d2 (irgb-distance original option2)]
          [d3 (irgb-distance original option3)]
          [d4 (irgb-distance original option4)])
      (let ([dmin (min d1 d2 d3 d4)])
        (cond
          [(= d1 dmin)
           option1]
          [(= d2 dmin)
           option2]
          [(= d3 dmin)
           option3]
          [else
           option4])))))

Unfortunately, that strategy does not tend to work very well, as we often end up with large swatches of identical colors.

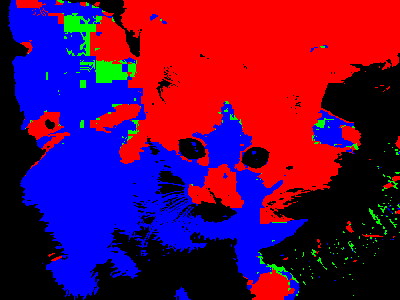

(image-variant kitten (section irgb-closest-4 <> (irgb 255 0 0) (irgb 0 255 0) (irgb 0 0 255) (irgb 0 0 0)))

What should we do instead? We should add some randomness to our selection. That is, we should select randomly among the four colors, with higher probability of selecting closer colors and lower probability of selecting further colors.

Document (4P's only) and implement a procedure, (irgb-speckle-4 original option1 option2 option3 option4) that takes five integer-encoded RGB colors as parameters and randomly returns one of option1, option2, option3, or option4, ensuring that the odds of closer colors are higher than the odds of further colors.

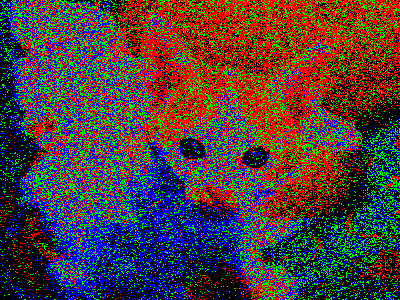

(image-variant kitten (section irgb-speckle-4 <> (irgb 255 0 0) (irgb 0 255 0) (irgb 0 0 255) (irgb 0 0 0)))

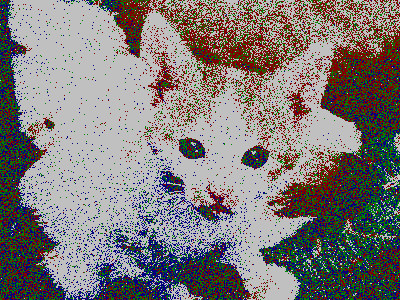

(image-variant kitten (section irgb-speckle-4 <> (irgb 128 0 0) (irgb 0 128 0) (irgb 0 0 128) (irgb 192 192 192)))

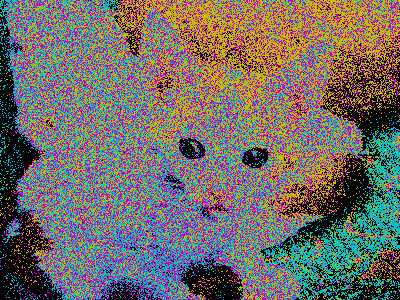

(image-variant kitten (section irgb-speckle-4 <> (irgb 192 192 0) (irgb 0 192 192) (irgb 192 0 192) (irgb 0 0 0)))

(define rainbow (image-show (image-compute (lambda (col row) (hsv->irgb (hsv col 1 1))) 360 100)))

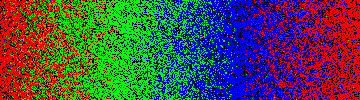

(image-variant rainbow (section irgb-speckle-4 <> (irgb 255 0 0) (irgb 0 255 0) (irgb 0 0 255) (irgb 0 0 0)))

Hint: irgb-closest-4 gives a good starting point (at least in terms of the initial values it computes). You will need to turn those values into some sort of probability or count, and then select randomly according to that probability or count. You should turn to your solution or a sample solution to HW5 for additional ideas.

Topics: Drawings as values, documentation

Document (6Ps) and write a procedure, (alternate-scale hpercent vpercent drawing) that creates a scaled version of drawing with the same left and top boundaries, but with the width scaled by hpercent and the height scaled by vpercent.

Note: You may find it more appropriate to write the tests before you write the procedure.

Topics: Testing

Write an appropriate test suite for alternate-scale. Make sure to test a wide variety of drawings, positions, and scales.

As you write your tests, you will find it helpful to write a helper something like the following.

(define check-scaling
  (lambda (message original scaled hscale vscale)
    (test-case
     message
     (check-= (drawing-left scaled) (drawing-left original)
              .001
              "left")
     (check-= (drawing-top scaled) (drawing-top original)
              .001
              "top")
     (check-= (drawing-width scaled) (* hscale  (drawing-width original))
              .001
              "width")
     (check-= (drawing-height scaled) (* vscale  (drawing-height original))
              .001
              "height")
     (check-equal? (drawing-color scaled) (drawing-color original)
                   "color")
     (check-equal? (drawing-type scaled) (drawing-type original)
                   "type"))))

Note: We will grade this problem primarily on the “coverage” of your tests; whether you have explored a wide variety of situations, both common and uncommon.

Note: The class mentors suggested that we place this problem before the one in which you write alternate-scale, since best practice is to write tests before you write code. However, since this is your first test involving tests, we've placed them in the order that many novice programmers find more comfortable.

Topics: Color blends, computing circles, image-compute

In the reading on building images, you learned how to compute an image of circles using the distance of each image pixel from a center point thresholded by the specified radius. In the corresponding lab, you learned how to generalize a linear (horizontal) blend from one color component's value to another. In this problem we will combine those two approaches.

Write, but do not document, a procedure (radial-green-blend width height center-col center-row radius initial final) that generates an image containing a radial color blend where the value of the color's green component is initial at (center-col, center-row) and final at all points of a distance of radius from the center of the circle, while the red and blue components remain zero; the pixels between the center and the radius should blend smoothly from initial to final. Outside the circle, pixels should be black.

;;; Procedure:
;;;   radial-green-blend
;;; Parameters:
;;;   width, a positive integer
;;;   height, a positive integer
;;;   radius, a positive integer
;;;   center-col, a non-negative integer
;;;   center-row, a non-negative integer
;;;   initial, an integer
;;;   final, an integer
;;; Purpose:
;;;   Create a width-by-height image that contains a green radial blend
;;;   centered at (center-col, center-row).
;;; Produces:
;;;   blend, an image
;;; Preconditions:
;;;   0 <= center-col < width
;;;   0 <= center-row < height
;;;   0 <= initial <= 255
;;;   0 <= final <= 255
;;; Postconditions:
;;;   (image-width blend) = width
;;;   (image-height blend) = height
;;;   For any position (i,j) in the image
;;;     (irgb-red (image-get-pixel blend i j)) = 0
;;;     (irgb-blue (image-get-pixel blend i j)) = 0
;;;   (irgb-green (image-get-pixel blend center-col center-row)) = initial
;;;   For any position (i,j) that is radius away from (center-col,center-row),
;;;     (irgb-green (image-get-pixel blend i j)) = final
;;;   For any other position less than radius away from the center, the
;;;     green component is appropriately scaled between initial and final.

In writing such a procedure, you may find the euclidean-distance procedure from the reading helpful. (If you incorporate it into your exam, please be sure to cite its source.)

	(radial-green-blend 256 256 128 64 64 0 255)
	(radial-green-blend 256 256 128 64 64 255 0)

Hint: Your computation of the green component should look very similar to horiz-blue-blend. However, instead of transitioning from column zero to width, the calculation will span a distance (from the center) of zero up to the radius.

Hint: Locally bind the distance of a given pixel from the center and use that distance both in a conditional test and in the calculation for the color's green component.

Topics: map and repetition, copy and paste.

Write a procedure, (drella! source target n row), that makes a row of the specified number of scaled copies of source in the image target. The copies should be scaled so that they fit appropriately.

;;; Procedure:
;;;   drella!
;;; Parameters:
;;;   source, an image
;;;   target, an image
;;;   n, a positive integer
;;;   row, a non-negative integer
;;; Purpose:
;;;   Make a row of the specified number of n scaled copies of
;;;   the source image in the target image.
;;; Produces:
;;;   [Nothing; called for the side effect]
;;; Preconditions:
;;;   (image-width target) = (image-width source)
;;;   (image-height target) = (image-height source)
;;;   (image-width source) is an integer multiple of n.  That is,
;;;     (integer? (/ (image-width source) n))
;;;   (image-height source) is an integer multiple of n.  That is,
;;;     (integer? (/ (image-height source) n))
;;;   0 <= row < n
;;; Postconditions:
;;;   target now contains n scaled copies of source.
;;;   Each copy is 1/n the width and 1/n the height of source.
;;;   The copies are side-by-side, with the first copy's left edge
;;;     at the left edge of target and the last copy's right edge
;;;     at the right edge of target.
;;;   The top of each copy is row/n from the top of target.

Here are some examples.

> (define kitten (image-show (image-load "/home/rebelsky/Desktop/kitten.jpg")))
> (define sample1 (image-show (image-new 400 300)))
> (define sample2 (image-show (image-load "/home/rebelsky/Desktop/kitten.jpg")))

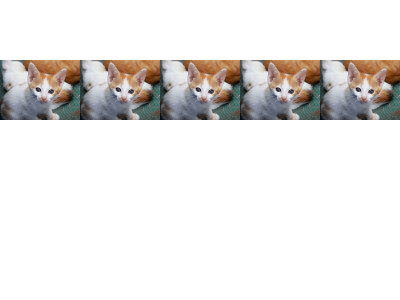

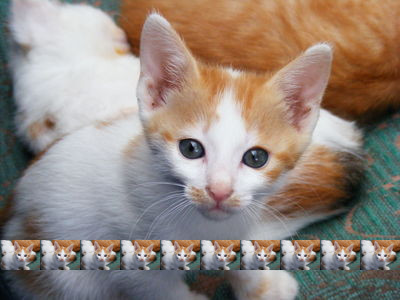

> (drella! kitten sample1 5 1)
> (drella! sample2 sample2 10 8)

	sample1
	sample2

Note that we can use drella! to make an n-by-n grid of images by using the following procedure.

(define alohraw
  (lambda (source n)
    (let ([target (image-new (image-width source) (image-height source))])
      (map (section drella! source target n <>)
           (iota n))
      target)))

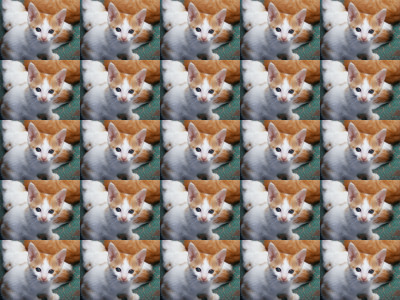

	(image-show (alohraw kitten 5))

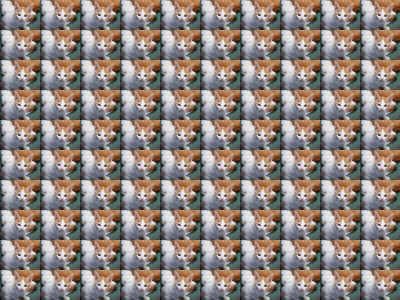

	(image-show (alohraw kitten 10))

Hint: You will find it easiest if you use some of the procedures we wrote in the lab on copying and pasting.

Topics: GIMP tools, code reading, conditionals, let, documentation

Jordan, Peyton, and Taylor have written a “wicked awesome” procedure that they've named after themselves. When they demonstrate it, you agree that it is clever. However, you find that their code does not meet your instructor's high standards.

(define jpt (lambda (color image y w h x)
(image-select-ellipse! color REPLACE y w (- h y) (- x w)) (if (=
image 1) (image-select-rectangle! color ADD y w (* 1/2 (- h y)) (*
1/2 (- x w))) (if (= 2 image) (image-select-rectangle! color ADD y (+
w (* 1/2 (- x w))) (* 1/2 (- h y)) (* 1/2 (- x w))) (if (= 3 image)
(image-select-rectangle! color ADD (+ y (* 1/2 (- h y))) w (* 1/2 (- h
y)) (* 1/2 (- x w))) (if (= image 4) (image-select-rectangle! color ADD
(+ y (* 1/2 (- h y))) (+ w (* 1/2 (- x w))) (* 1/2 (- h y)) (* 1/2 (-
x w))) (error "I don't like the value" image))))) (image-fill! color)
(image-select-nothing! color) color))

You ask your class mentors what you should do to improve the procedure. They suggest the following.

When you are done cursing Jordan, Peyton, and Taylor, make these changes to the code.
